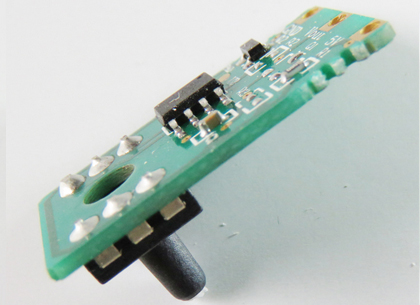

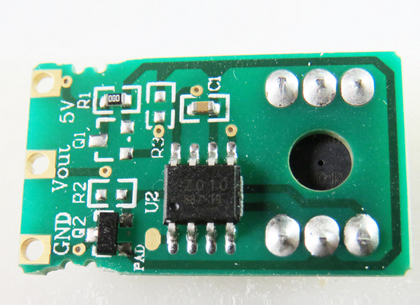

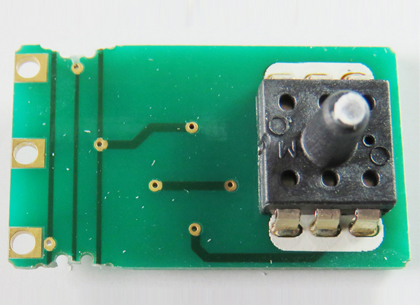

MHSG series pressure sensor module is consists of differential pressure sensor, signal conditioning circuit and additional electronic components. The pressure sensor systems mounted on FR4 PCB. This temperature compensated and calibrated sensor provides an accurate, high level analog output signal that is proportional to applied pressure. The maximum pressure rang of the sensor cell is 1 MPa gauge pressure. The supply voltage is 5±0.5V,the type supply current is 2.5mA. The pressure sensor module has the features of the small form factor and high reliability. Application fields include automotive pressure monitoring, pneumatic gages, hand-held meters, industrial controls and so on.
Operating Characteristics
Table 1. Operating Characteristics (VS = 5.0 Vdc, TA = 25°C.
|
Characteristic |
Symbol |
Min |
Typ |
Max |
Unit |
|
|
Pressure Range |
Pop |
--- |
--- |
1000 |
kPa |
|
|
Supply Voltage(1) |
VS |
4.5 |
5.0 |
5.5 |
Vdc |
|
|
Supply Current |
IO |
--- |
2.5 |
4 |
mAdc |
|
|
Full Scale Span @ VS = 5.0 Volts(2) (0 to 85°C) |
VFSS |
--- |
--- |
5 |
Vdc |
|
|
Accuracy(3) (0 to 85°C) |
--- |
--- |
--- |
± |
2 |
% VFSS |
|
Sensitivity |
V/P |
Customized |
